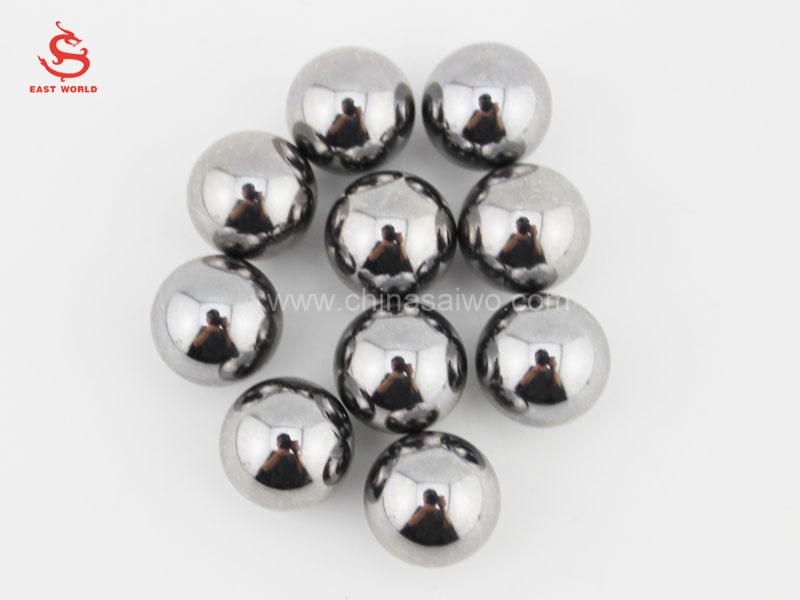

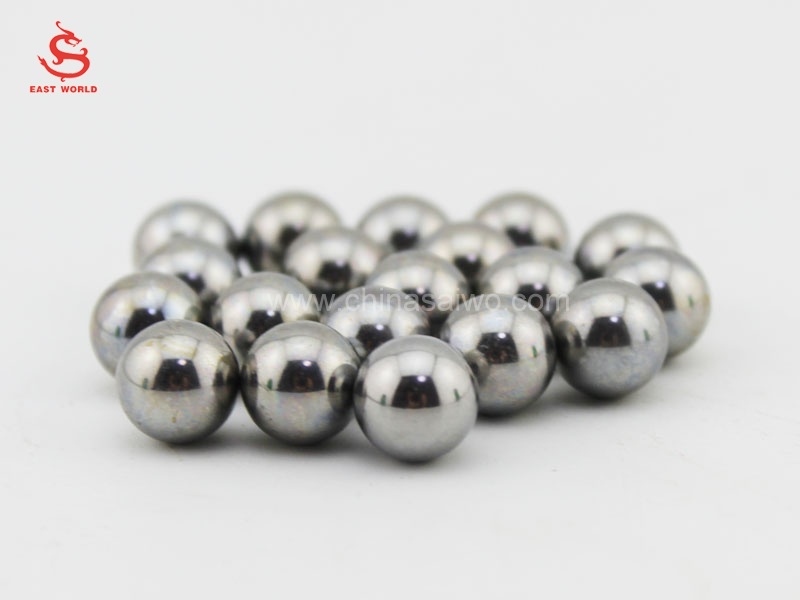

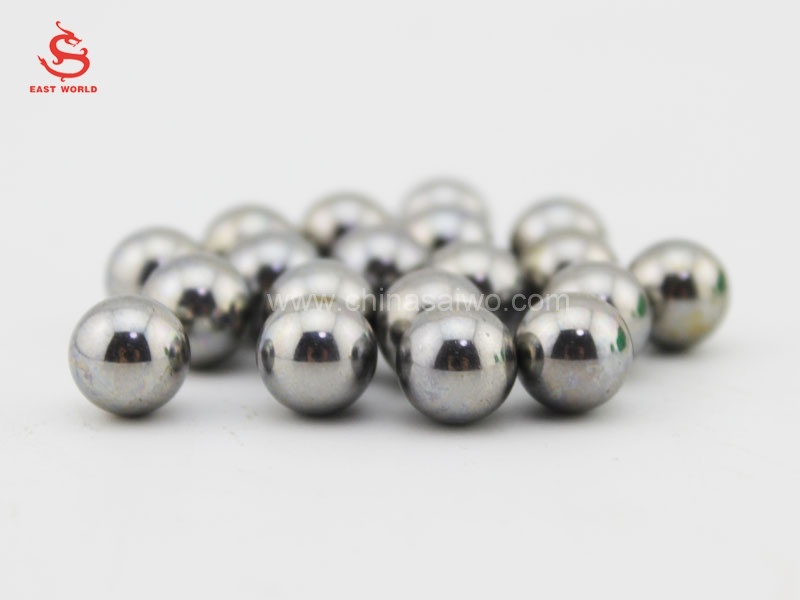

Carbon Steel Ball

Product detail :

Chemical Composition

 AISI Number

C%

SI%

Mn%

P%

S%

Hardemess

AISI 1010

0.08-0.13

0.03Max

0.50Max

0.07Max

0.06Max

Case Hardened

AISI 1015

0.13-0.18

0.10-0.30

0.30-0.60

0. 04Max


Case Hardened

AISI 1045

0.43-0.50

0.10-0.30

0.60-0.90

0. 04Max

0. 05Max

Through Hardened

AISI 1085

0.83-0.88

0.10-0.30

0.30-0.70

0. 04Max

0. 04Max

Through Hardened


Low silicate carbon ball (Si 0.04% Max) also available

•Application:Light duty bearing.conveyer belt,bicycle and automobile parts, slide bearing,caster wheels,computer peripheral products, toys,metal milling, hand tools and ete

•Density:7.861 g/cm³

•Grade: 80-milling

•Size: 1.0mm-1"


Product Applcation:

Light duty bearing conveyer belt bicycle and automobile parts slide bearing, caster wheels .computer peripheral products toys,metal milling.hand tools and elc Density:7 .861 g/cm' Grade: 80-milling Size: 1.0mm- 1"

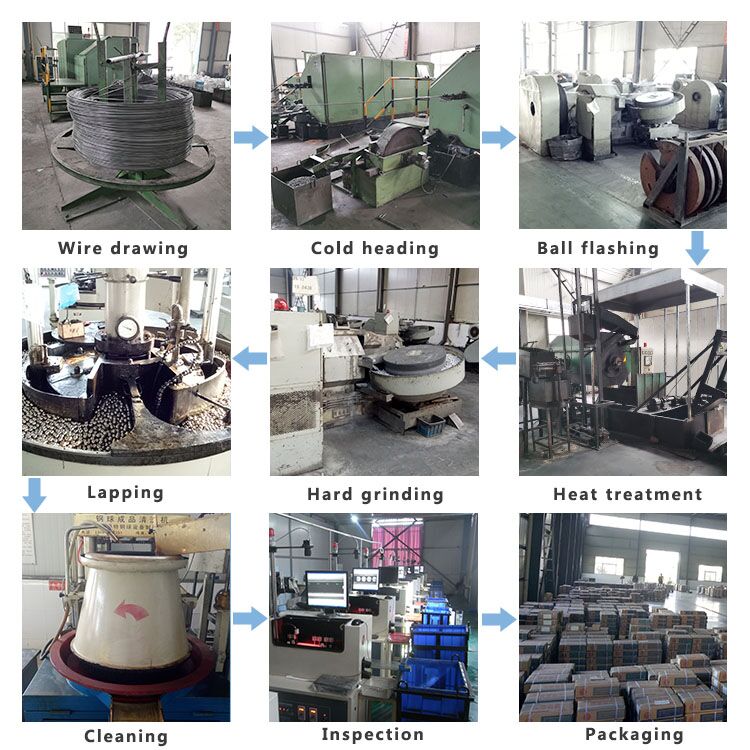

Product Process:
1.Raw Material
Each batch of raw material steel is inspected and classified according to different material (carbon, stainless, chrome), size and
quantity, which marked with the Material Cert. The qualified steel comes to the quarantine area; the unqualified will be rejected
with a record.
2. Wire Drawing
The steel is made into different sizes according to the needed requirements.
3. Heading
The raw material certified is worked on high-speed casting machines to cast into different size pieces.
4.Flashing
This step of the production process involves rolling the pieces between discs with concentric grooves to eliminate signs of
casting and to increase the precision of the ball.
5. Heat Treatment
Heat treatment, where necessary, gives the balls the maximum possible hardness and the best technical characteristics that can be
achieved with the materials used.
6.Lapping i (Grinding)
Successively several careful grinding processes using ceramic grinding wheels give greater dimensional precision and prepare the
balls the next, final lapping process.
7. Lapping ii
This procedure gives the ball a perfectly shiny, compact and defect-free surface, with very low surface roughness, much lower
than that required under GB/308-2002
8. Selecting and Final Inspection
The sorting machines together with the manual detecting and modern testing processes, largely ensures the high quality of our
products.
9. Packing:We pack them according to customer’s requirements


We get the above Certificates:
Business License
Organization Code Certificate
Tax Registration Certificate
Permission License
SGS Certificate
Certificate of quality management system certification
GB/T19001-2016 idt ISO9001:2015
IATF 16949:2016
Certificate of Honor
Patent Certificate

We can provide many kinds of packages according to the customer's needing as follows:
1, woven bag
2, woven bag + carton box
3, woven bag + carton box + wood pallet
4, woven bag + carton box + wood cases
5, boxes + carton box + wood cases
If the customers have their own packages,we can also customize.
(1)Our loading ports can be as follows:
Qingdao,Shanghai,Tianjin,Shenzhen,Ningbo,Guangzhou,Suzhou,Dalian,Tangshan, Qinhuangdao,Yingkou.
(2)We also have many kinds of transportation can be chosen by our customers,such as railway, road, sea and air .

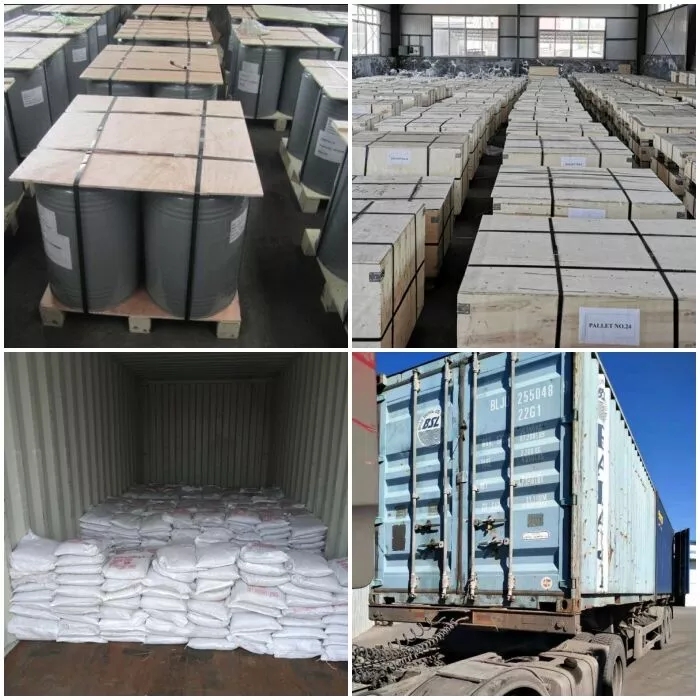

steel balls packaging:

1.Standard export packing:4box/carton poly bag, woven bag, pallet available.
2.Steel drums(1000kg per drum)
3.High quality special plastic woven bags
4.we also packing the products according to the customer requirements completely.


FAQ:
Q:Are you the factory or trade company?
A:Yes, we are professional the original factory of steel balls.
Q:Free sample can be provied?
A:Of course, we can.Free samples can be offered for your quality check.
Q:What's the inspection method to ensure the quality of steel balls?
A:Roller sorting, optical machine sorting and visual inspection.
Q:How is the after sales service?
A:Please contact us in 24 hours freely.We will reply you in 1 hour.
Q: Can I come visit your office and factory?
A:Yes, and we shall be greatly honored by your gracious presence.
Q: What is your delivery time for the order?
A: Normally our delivery time is 15-20 days, but if we have the products you want in our stock, the delivery time will be in about
one week or less.
Q: Which country is your main market now?
A: Mid-East, North Africa, West Africa, South-east Asia, South America and Northern Europe district. Especially, a firm customer
base in Saudi, Morocco, Nigeria, India, Bangladesh, and Russia etc.
